Mining Catalog

Boost your profitability with qualified products & optimized processes

Our Products

High Chrome Grinding Media

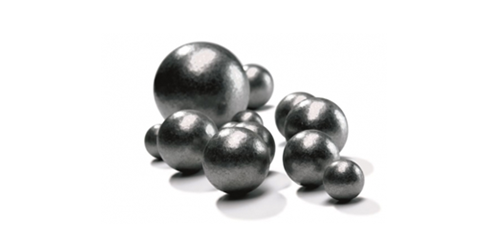

High Chrome Grinding Media

High-Chrome grinding media combines martensitic structure with hard chrome carbides. This provides the best wear resistance against corrosion and abrasion of all kinds. Magotteaux´s expertise enables them to select the alloy which fits your application perfectly and minimizes the costs. High-Chrome media has a superior performance and creates steady milling conditions due to its low wear rate. For each specific alloy there is a constant hardness of all grinding media. This creates a positive influence in the down-stream process. high-Chrome media is suitable for both wet and dry ore applications in ball mills and tower mills.

Parameter Specification
Diameters 13 to 100 mm (0.5 to 4 inches)
Cr nominal 10 to 35 %

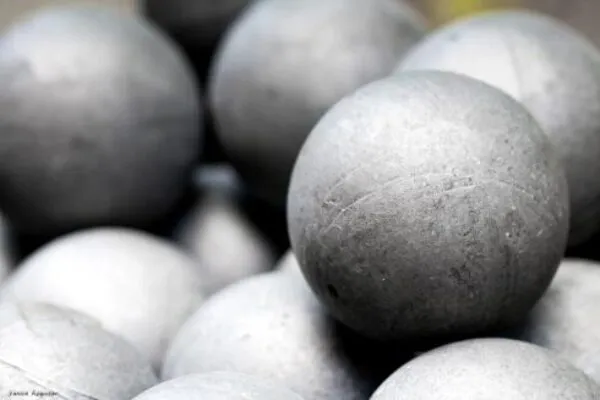

Steel Forged Grinding Media

Steel Forged Grinding Media

Magotteaux mining grinding media forged quality offers the highest market standards in terms of wear and impact resistance.

Forged grinding media is available in a full range of diameters, making it a solution available for each milling stage.

  • Cost effectiveness
  • Low initial investment
Parameter Specification
Diameters 25,4 > 152,4 mm (1 to 6 inches)
Surface hardness 56 – 64 Rc
Volumetric hardness 52 – 64 Rc
C nominal % 0,70 – 1,08
Delivered in bulk, drum or bag

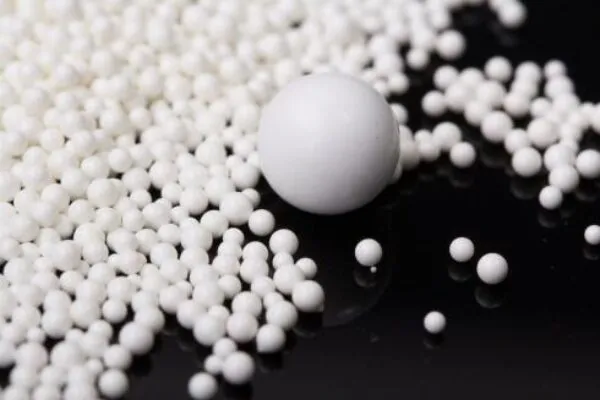

Ceramic Grinding Media

Ceramic Grinding Media

Magotteaux mining grinding beads ceramic a brand-new quality of ceramic grinding media for fine and ultra-fine grinding applications was developed by combining the unrivaled ceramic expertise of Grintec Advanced Materials technology Co., Ltd. and our technical and market knowledge.

  • Reduction in wear measured in gr/kWh milled
  • Minimum contamination of the material ground
  • Stable Process
  • Constant and reliable product’s quality
  • Continuous development of new quality product with our partner Grintec to respond to market demand
Parameter Specification
Diameters 0,3 – 5 mm for beads and 8 – 60 mm for balls
Specific density (g/cm3) > 2.7 – > 5.0

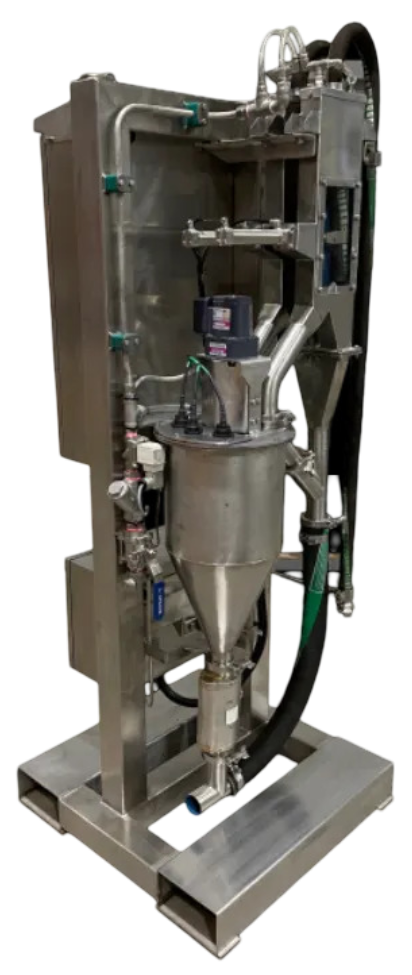

MagoPulp

MagoPulp

As base metal ores become increasingly more complex, there is mounting pressure to improve concentrator productivity. Traditional mineral processing plant control relies heavily upon operator experience and overly generalised mineralogical data to represent a constantly changing, heterogeneous mineral assemblages.

  • Real time proxy for mineralogy
  • Increase recovery
  • Improved plant stability
  • Reduction in reagent use
  • Direct control or recommendation modes
  • Self-retraining algorithms tailored to your plant and mineralogy
MagoSense

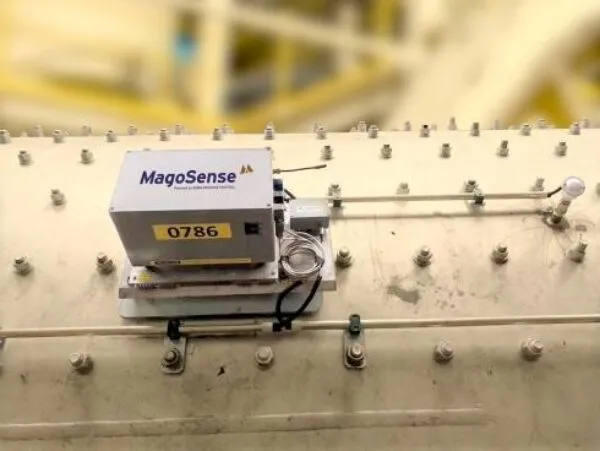

MagoSense

MagoSense, designed specifically for the mining industry. It prevents you running blind by gathering information in order to optimize the working conditions of the mill.

MagoSense offers you many advantages:

  • Maximize mill troughput. MagoSense helps control the mill fill level to avoid mill overloading and allowing better control of mill grind-outs.
  • Minimize liner damage & wear. MagoSense helps reducing the occurrence of ball impacts on liners, thereby extending liner and media lifetime.
  • Improve mill efficiency. MagoSense helps the mill operator to decide on the grinding strategy in order to maintain the optimal power and load charge conditions for maximization of the grinding efficiency.
  • Reduce mill downtime. MagoSense helps reducing unexpected mill stops due to any type of grinding issue, having a direct positive impact on safety and productivity.
Sodium Hydrosulphide

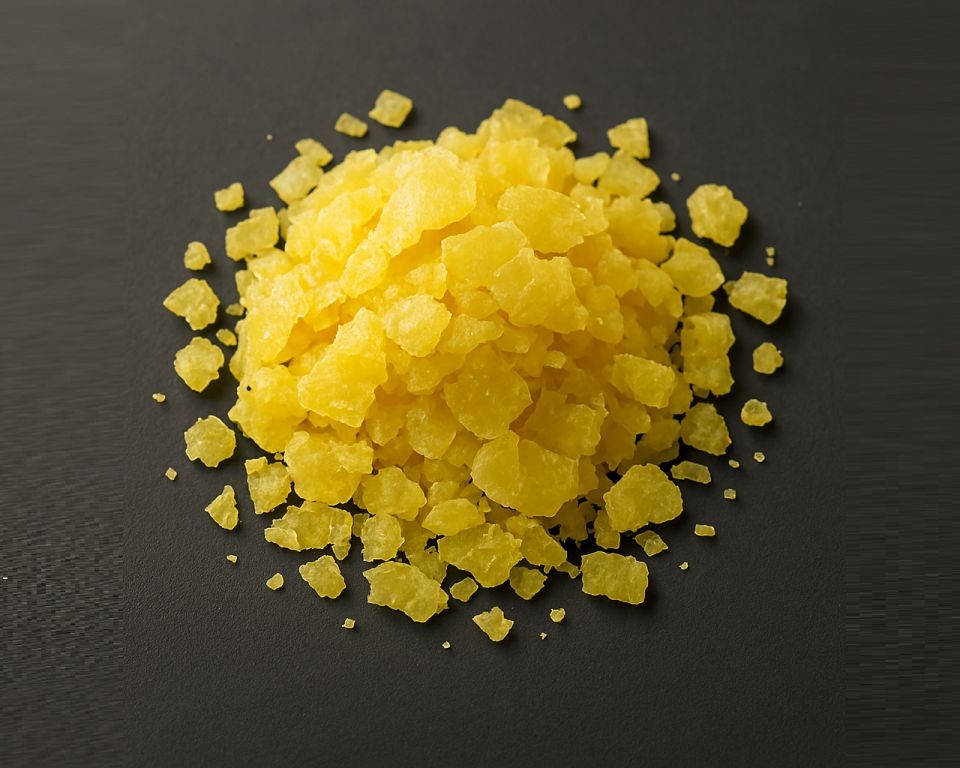

Sodium Hydrosulphide

Sodium hydrosulfide (NaSH) is an inorganic compound that is commonly used in various industrial applications. It is a white to yellowish crystalline solid, but it is more often encountered as a solution due to its high solubility in water. Sodium hydrosulfide has a strong, unpleasant odor of hydrogen sulfide (H₂S), which is released when the compound comes into contact with moisture or acids.

  • NaHS is commonly used in industrial applications as a source of hydrogen sulfide gas, a reducing agent, and as a precursor to other chemicals. Sodium hydrosulfide flakes are typically white to off-white in color and have a characteristic odor.
  • They are soluble in water and are corrosive in nature. The flakes are commonly used in the mining, textile, and water treatment industries, among others, for various processes such as copper ore flotation, leather tanning, and wastewater treatment.
Parameter Specification
Purity(as NaHS) 70% Min
Na₂S 3% Max
Iron 0.003% Max
Water Insoluble 0.005% Max
Ferrous Sulphate HeptaHydrate

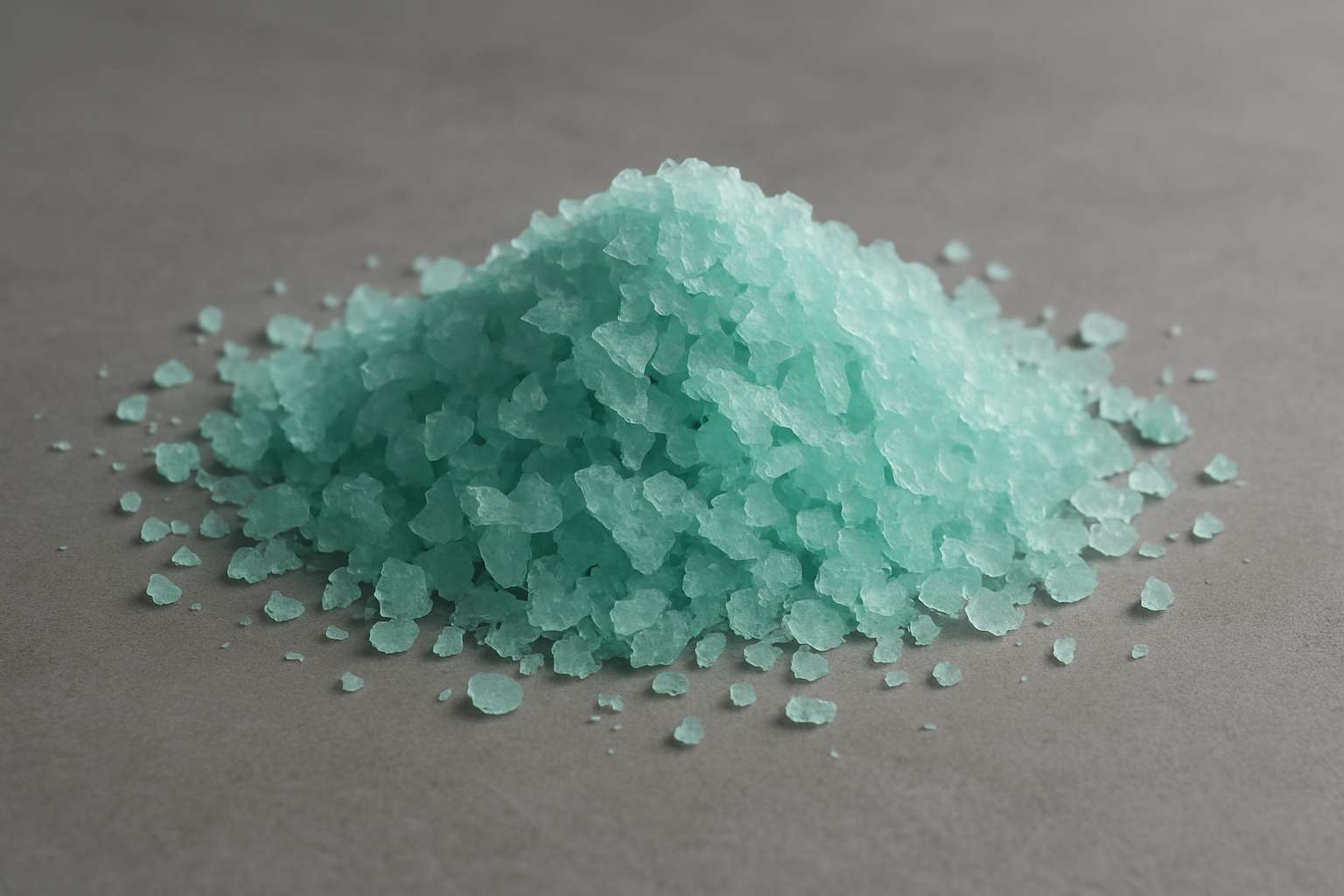

Ferrous Sulphate HeptaHydrate

Ferrous sulfate heptahydrate, also known as iron(II) sulfate heptahydrate, is a chemical compound with the formula FeSO₄·7H₂O. It is a hydrate, meaning it contains water molecules within its crystal structure. It appears as blue-green crystals or granules and is soluble in water. It's used in various applications, including as a reducing agent, a source of iron, in water treatment, and in agriculture.

What are the advantages of our Ferrous Sulphate :

  1. Higher Iron Content and Purity
    • Higher Fe2+ content (min 19%) means better coagulation efficiency.
    • Low levels of contaminants like heavy metals ensure safety in treated water.
  2. Better Solubility and Dissolution Rate
    • Proper crystalline structure ensures rapid dissolution.
    • Uniform particle size improves dosing accuracy and mixing.
  3. Lower Impurity Profile
    • Lower levels of contaminants like manganese, aluminum, or chromium.
Parameter Specification
Appearance Blue–Greendry
FeSO₄·7H₂O ≥ 98.13%
Fe ≥ 19.7%
Sulphur (as S) percent by weight 10.5 Min
pH (1% solution) not less than 3.5
Moisture (% by weight) 1.5 Max
Titanium dioxide ≤ 0.25
Free acid (HCL) ≤ 1
As % ≤ 0.0004
Pb % ≤ 0.002
Cd % ≤ 0.0005

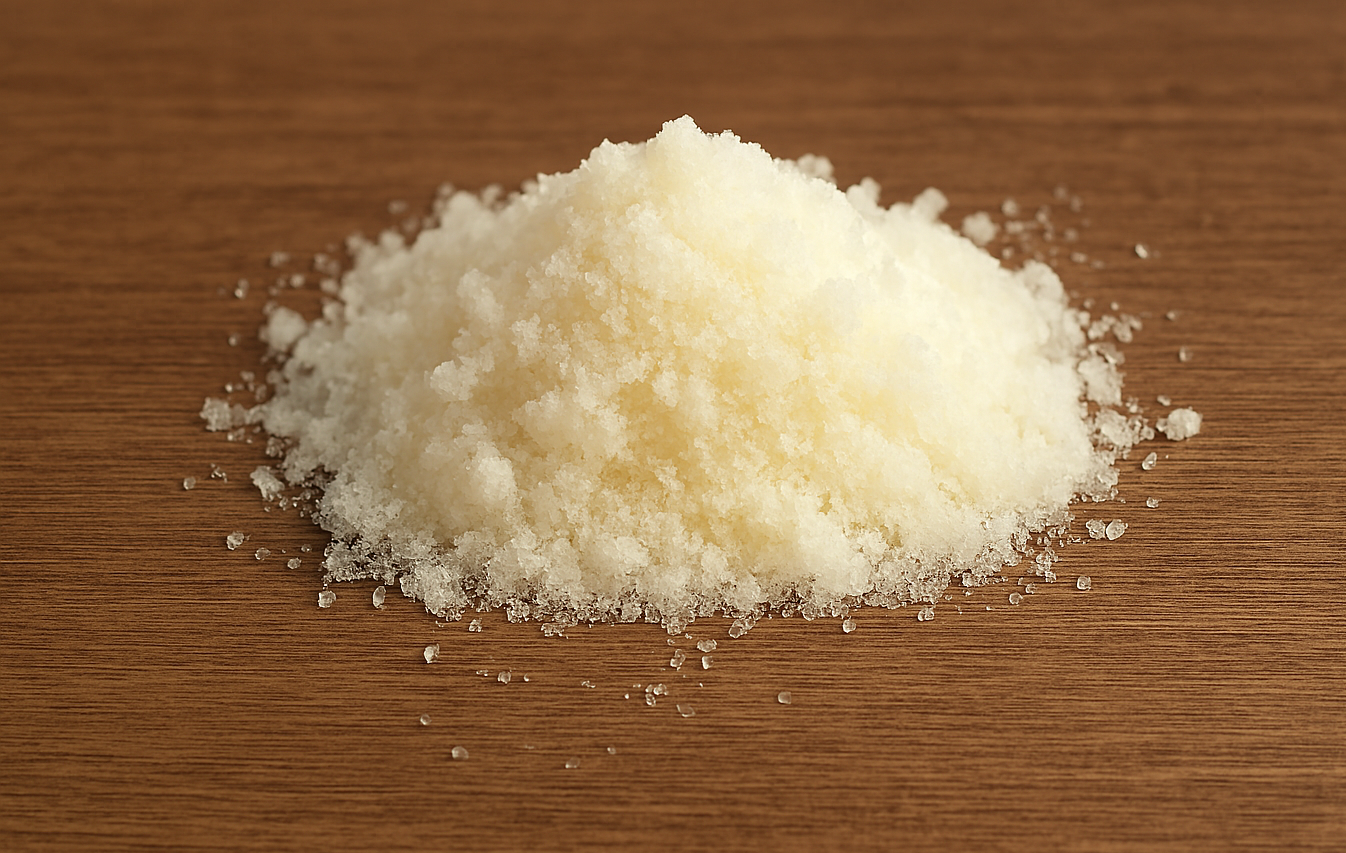

Sodium Metabisulfite

Sodium Metabisulfite

Sodium Metabisulfite (Na₂S₂O₅) is an inorganic compound widely used in various industries due to its preservative, antioxidant, and disinfectant properties. It is a white crystalline powder with a slight sulfur odor and is highly soluble in water. Sodium metabisulfite is commonly encountered in food preservation, water treatment, photography, and other industrial applications.

Parameter Specification
Sodium Metabisulphite (Na₂S₂O5) ≥ 96.5%
Fe ≤ 0.005%
Water insoluble ≤ 0.05%
As ≤ 0.0001%
Heavy metal (Pb) ≤ 0.0005%
Ph value ≤ 4.0-5.0
SO2 ≥ 65%
Appreance White to slightly yellowwish crystialline powder
Sulfuric Acid

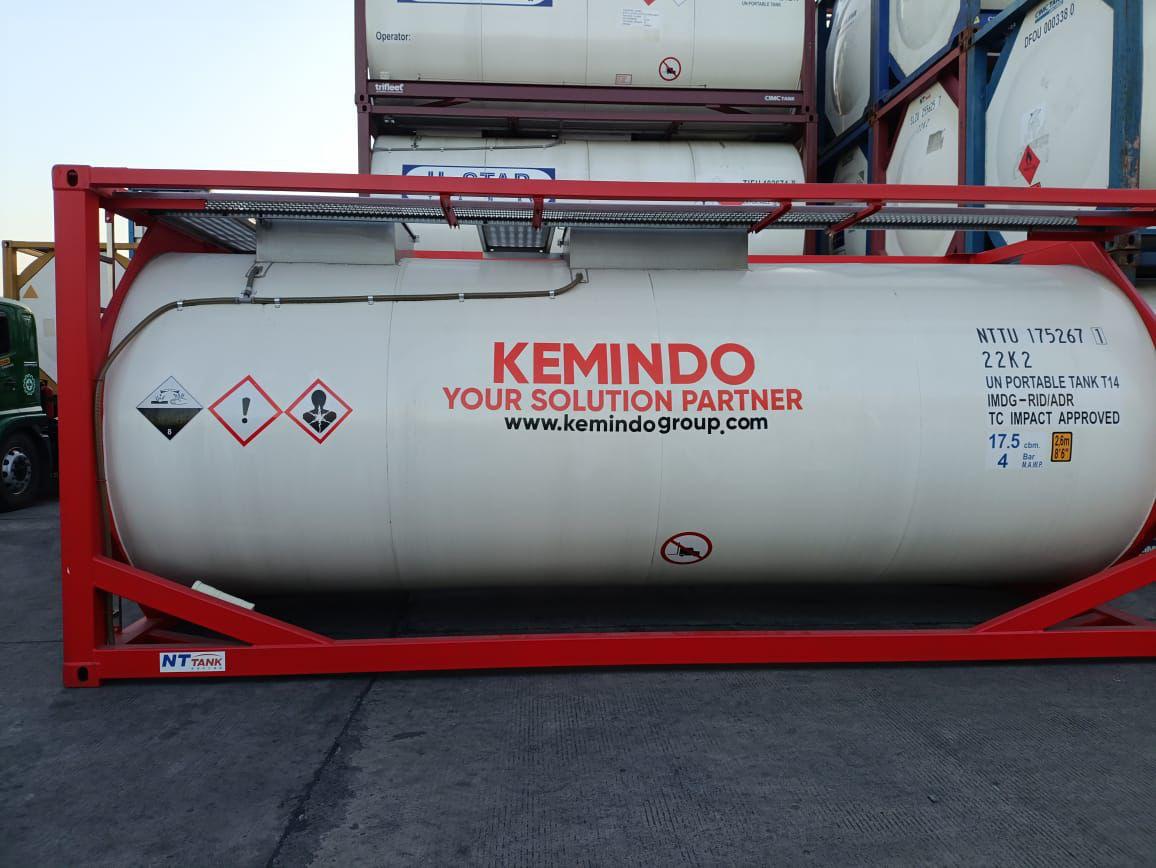

Sulfuric Acid

Sulfuric Acid (H₂SO₄) is a highly concentrated, strong mineral acid commonly used across a wide range of industries including chemical manufacturing, fertilizers, petroleum refining, wastewater treatment, and metal processing. This high-purity product ensures excellent performance and consistency in industrial applications.

Parameter Specification
Purity Min 98.00%
Specific Gravity Min 1.800
Iron (Fe) Content Max 40 ppm
Packing Options Supplied in Drums, Intermediate Bulk Containers (IBCs), and ISO Tank

Our Sulfuric Acid is manufactured and packaged under strict quality standards, ensuring maximum safety and effectiveness for your industrial needs.

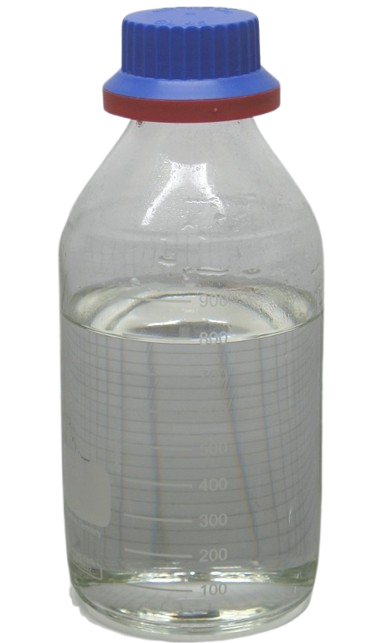

Hydrochloric Acid

Hydrochloric Acid

Hydrochloric Acid (HCl) is a clear, highly corrosive, and pungent solution widely used in various industrial applications. This product is formulated to meet strict quality standards, making it ideal for use in chemical manufacturing, metal processing, water treatment, and other industrial sectors.

Parameter Specification
HCl Content Min 32.0%
Iron (Fe) Content Max 0.001%
Specific Gravity at 28°C Min 1.150
Appearance Colorless and transparent or light yellow liquid
Packing Options Available in Drums, Intermediate Bulk Containers (IBCs), and Tank Trucks

Our Hydrochloric Acid is produced and handled under strict quality controls to ensure safety, purity, and performance consistency.

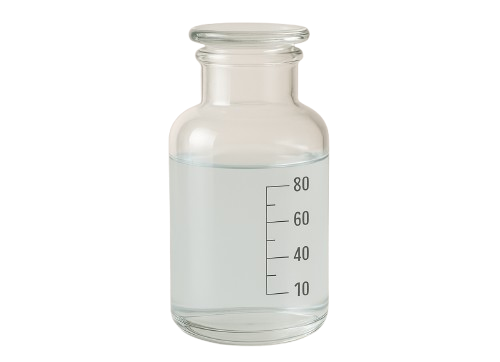

Alumunium Sulphate Liquid

Alumunium Sulphate - Liquid

Aluminium sulphate liquid, commonly referred to as alum, is a chemical compound with the formula Al₂(SO₄)₃. It is a white, crystalline solid that is highly soluble in water and forms a solution with an acidic pH. This compound is primarily used as a coagulating agent in water treatment processes, where it helps to remove impurities and contaminants from water, making it safe for consumption and industrial use.

Parameter Specification
Al₂O₃ Content 8% Min
Ferro Oxide Fe₂O₃ 8.0 ppm Max
Lead (Pb) 0.1 ppm Max
Arsenic (As) 0.002 ppb Max
pH solution at 25C 2.06
Alumunium Sulphate

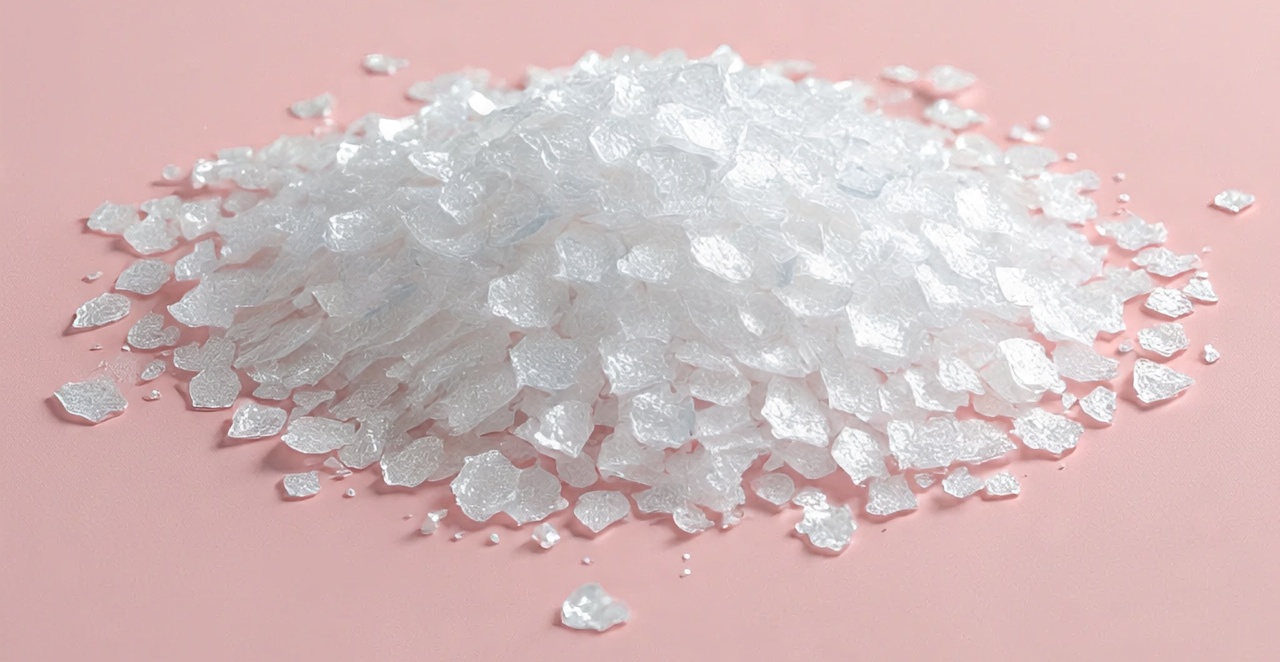

Alumunium Sulphate

Aluminum Sulfate (Al₂(SO₄)₃·xH₂O) is a white or slightly off-white crystalline flake that is highly soluble in water. It is one of the most widely used aluminum compounds and plays a critical role in water treatment, paper manufacturing, and other industrial applications. Aluminum sulfate is commonly referred to as "alum" in its hydrated form, although technically "alum" refers to a broader group of double sulfate compounds.

Parameter Specification
AL₂O₃ Content 17% Min
Arsenic (As) 0.005 ppb Max
pH solution at 25C 2.06

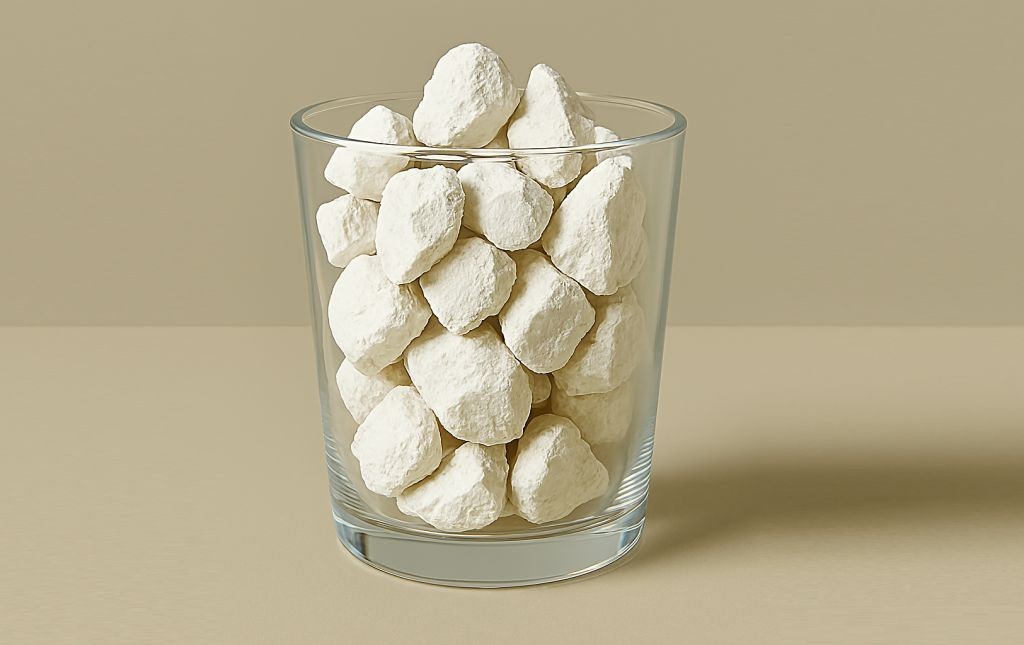

Quick Lime

Quick Lime

Quick Lime, also known as Calcium Oxide (CaO), is a high-performance chemical compound extensively used in industries such as steel, mining, water treatment, and construction. It is valued for its high calcium content, strong reactivity, and efficiency in chemical processes such as pH regulation, flue gas treatment, and mineral processing.

Parameter Specification
Available CaO Min 90%
Magnesium Oxide (MgO) Max 1.0%
Silica Oxide [SiO₂] Max 1.5%
Loss on Ignition (LOI) Max 4%
Reactivity Min 20
Lump Size 20–70 mm

Our Quick Lime is produced using selected limestone and advanced calcination technology, resulting in consistent quality and optimal reactivity to meet the demands of critical industrial applications.

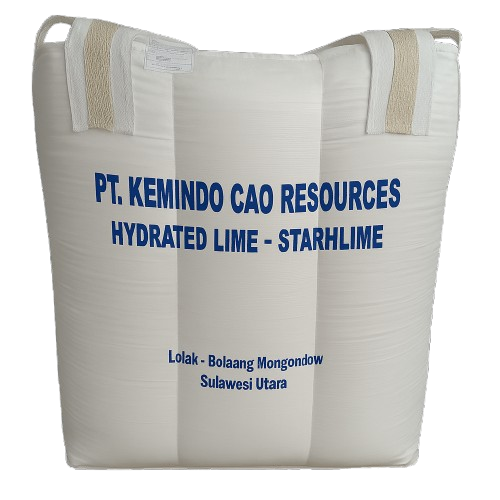

Hydrated Lime

Hydrated Lime

Hydrated Lime, also known as Calcium Hydroxide [Ca(OH)₂], is a refined chemical compound widely used in water treatment, construction, mining, and environmental applications. Our high-purity Hydrated Lime ensures efficient performance across various industrial processes, offering consistent chemical quality and low impurity levels.

Parameter Specification
Ca(OH)₂ 85 – 95%
Magnesium Oxide [MgO] 1.0 – 5.0%
Silica Oxide [SiO₂] 0.1 – 2.0%
Iron Oxide [Fe₂O₃] 0.01 – 0.1%
Aluminium Oxide [Al₂O₃] 0.1 – 1.0%
pH (25℃ saturated water solution) 12.44
Melting point/Freezing point 580℃ (decomposition)
Bulk density 450 kg/m3
Relative Density / Specific Gravity 2.2 – 2.3 g/cm3 (true)

Our Hydrated Lime is produced under strict quality control to ensure product consistency, low trace metal content, and excellent performance in industrial and environmental applications.

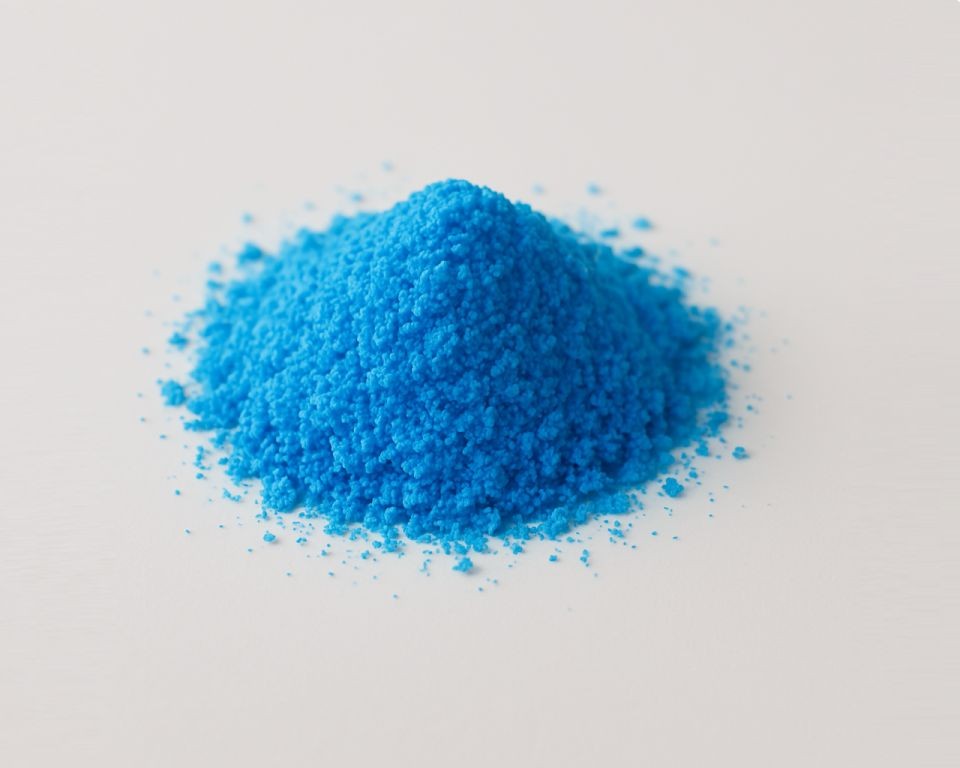

Copper Sulphate

Copper Sulphate

Copper Sulphate (CuSO₄) is an inorganic compound widely recognized for its bright blue crystalline form when hydrated, commonly referred to as blue vitriol . It is a versatile chemical used in agriculture, industry, and laboratory settings. Copper sulphate exists in both anhydrous and hydrated forms, with the pentahydrate (CuSO₄·5H₂O) being the most common and commercially available.

Parameter Specification
CuSO₄·5H₂O Min 98
Cu 24.95 (typical value > 25%)
Free H₂SO₄ Max 0.25
Fe Max 0.04
As Max 0.01
Water Insoluble Max 0.05

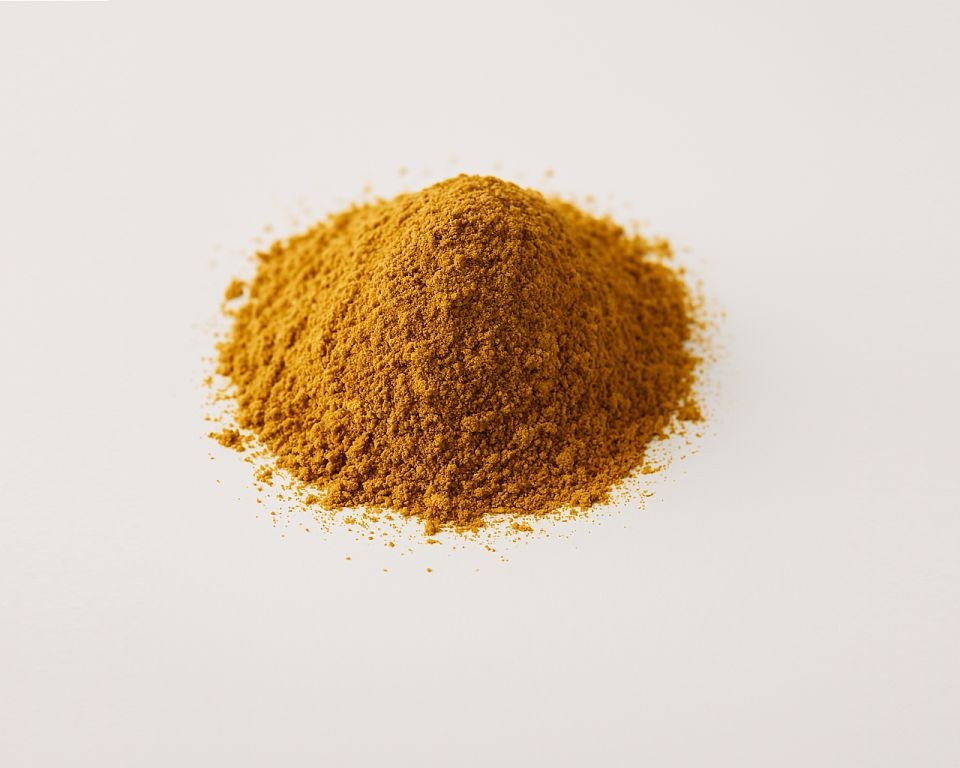

Ferric Sulphate

Ferric Sulphate

Ferric Sulphate (Fe₂(SO₄)₃·xH₂O) is an inorganic compound widely used as a coagulant, flocculant, and oxidizing agent. It exists in both anhydrous and hydrated forms, with the hydrated form being more common due to its stability and ease of handling. Ferric sulphate is a yellowish-brown crystalline solid or powder that is highly soluble in water, forming a strongly acidic solution. It plays a critical role in water treatment, industrial processes, and environmental applications.

Parameter Specification
Fe3+ % w/w 21.5 Min
Reduced matter (as Fe2+) % w/w 0.1 Max
Free acid 0.5 Max
Insoluble material % w/w 0.3 Max
Appearance Yellow powder

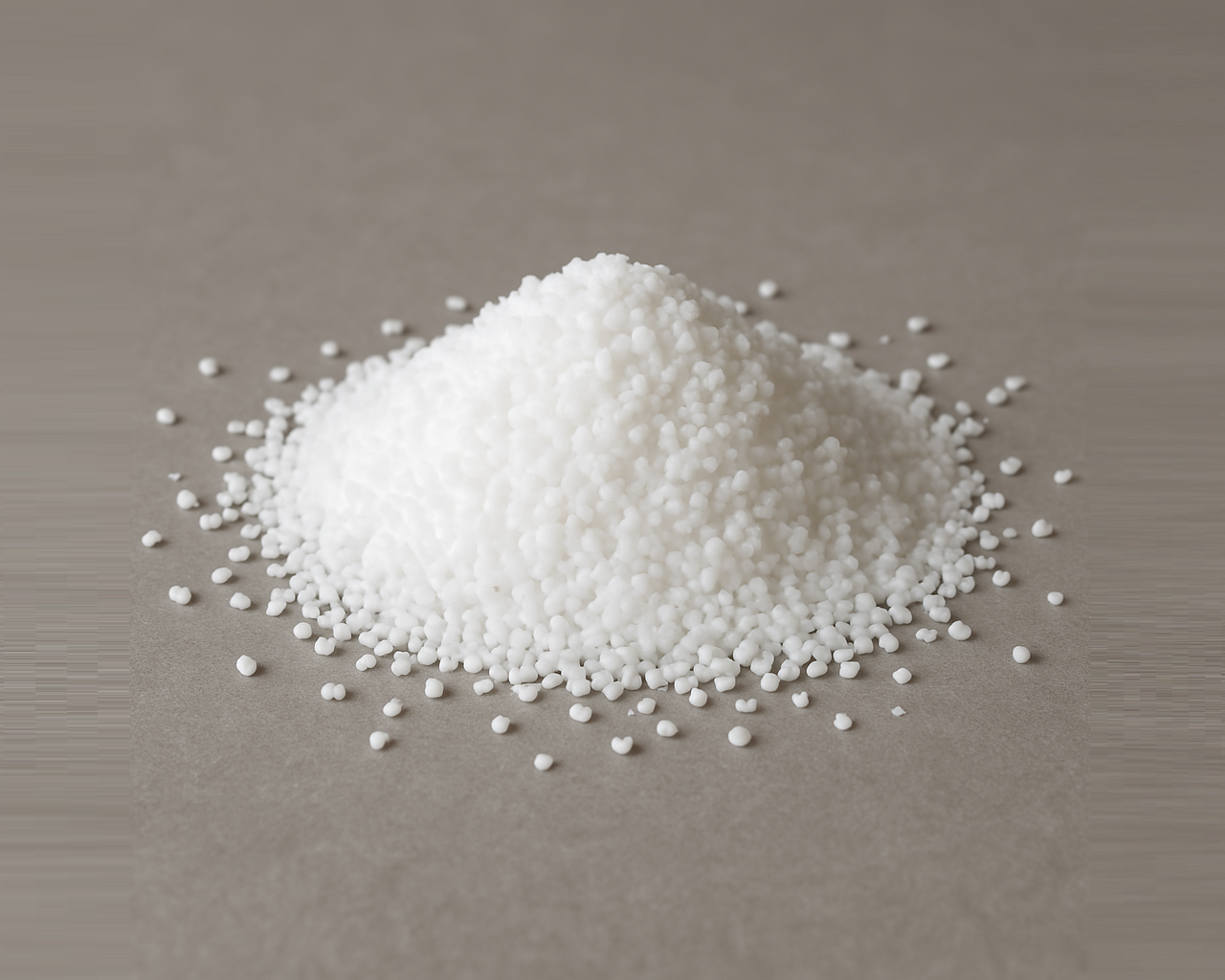

Soda Pearl

Soda Pearl 99

Soda Pearl – 99, also known as Sodium Hydroxide Pearl, is a highly pure, solid form of NaOH used in a broad range of industrial processes including chemical manufacturing, soap and detergent production, water treatment, and petroleum refining. Its high purity and low impurity content make it ideal for applications requiring stringent quality standards.

Parameter Specification
Sodium Hydroxide (NaOH) Min 99%
Sodium Carbonate (Na₂CO₃) Max 0.5%
Sodium Chloride (NaCl) Max 0.03%
Sodium Sulfate (Na₂SO₄) Max 0.03%
Iron Oxide (Fe₂O₃) Max 0.001%

Our Soda Pearl is produced under controlled conditions to ensure consistent granule size, easy handling, and superior chemical performance for industrial applications.

Low Cement Castable

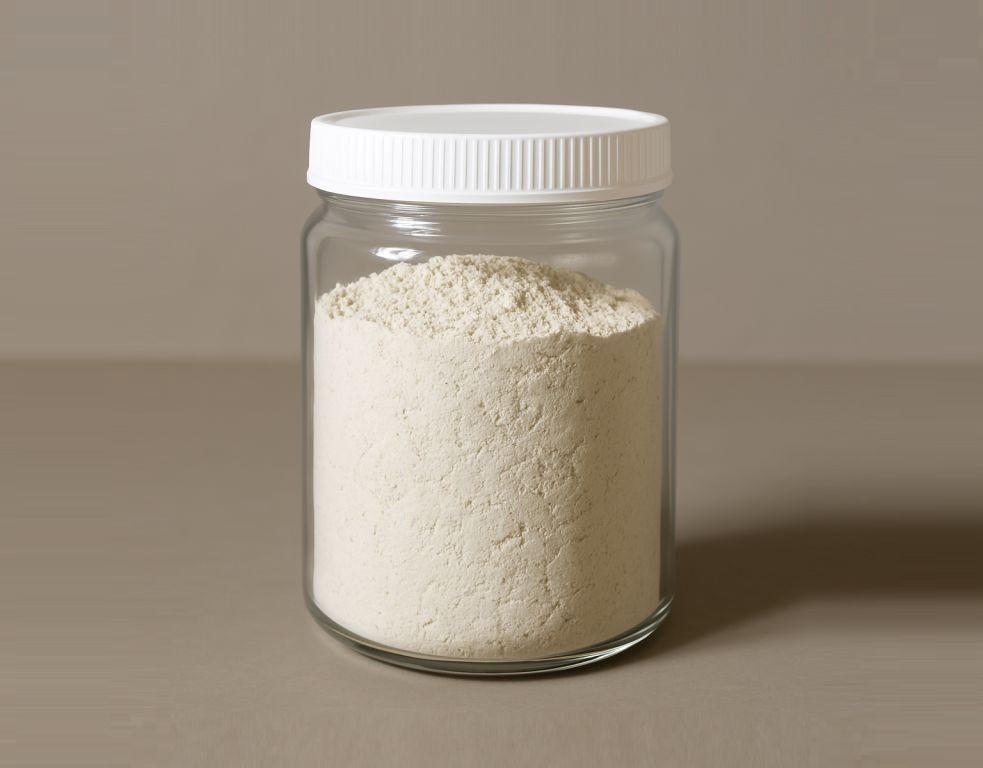

Low Cement Castable

Low Cement Castable (LCC) is a type of refractory material used in high-temperature applications. It is a monolithic refractory product composed of fine and coarse aggregates, a binder system, and additives. As the name suggests, LCC contains a lower percentage of cement compared to traditional castables, typically less than 3% by weight. This reduction in cement content improves its performance characteristics, such as higher density, better thermal shock resistance, and reduced porosity.

Low Cement Castables are widely used in industries such as steel, cement, petrochemicals, and power generation, where they line furnaces, kilns, ladles, and other high-temperature equipment.

TSLC 75
Al₂O₃ ≥ 75%
SiO₂ ≤ 20%
CaO ≤ 2.5%
Fe₂O₃ ≤ 1.5%
Service Temp (℃) ≥ 1700
Bulk Density g/cm3 (815℃) ≥ 2.65
Cold Crushing Strength (Mpa) 815℃ ≥ 70
Permanent Linear Change (%) 815℃ ≥ -1.5%
Max Grain Size 8 mm
Type of Installation With Water/Vibration Flow, Pumpable, Self Flow
Storage Period (dry, cool and no frost) 10-12 month depending on the storage place and climate.
Package Kraft Paper Bag of 25 kg on Pallet (1250 kg)
Setting time Min. 1-4 hour
Curing Time Max. 24 hour
StarPAX

StarPAX

Potassium Amyl Xanthate (PAX, C₆H₁₁OS₂K) is a pale yellow to orange, water-soluble powder with a strong sulfurous odor, primarily used as a flotation agent in mining to separate sulfide ores (e.g., copper, lead) by rendering them hydrophobic. It decomposes in heat, acid, or moisture, releasing toxic carbon disulfide (CS₂), and poses hazards like skin/eye irritation and environmental toxicity. PAX is combustible and requires cool, dry storage with proper PPE.

Parameter Specification
Appearance Yellow to yellow green pellets or free flowing powder
Purity 90.00% Min
Free alkali 0.2% max 0.13
Moisture & volatile 4% max 3.08

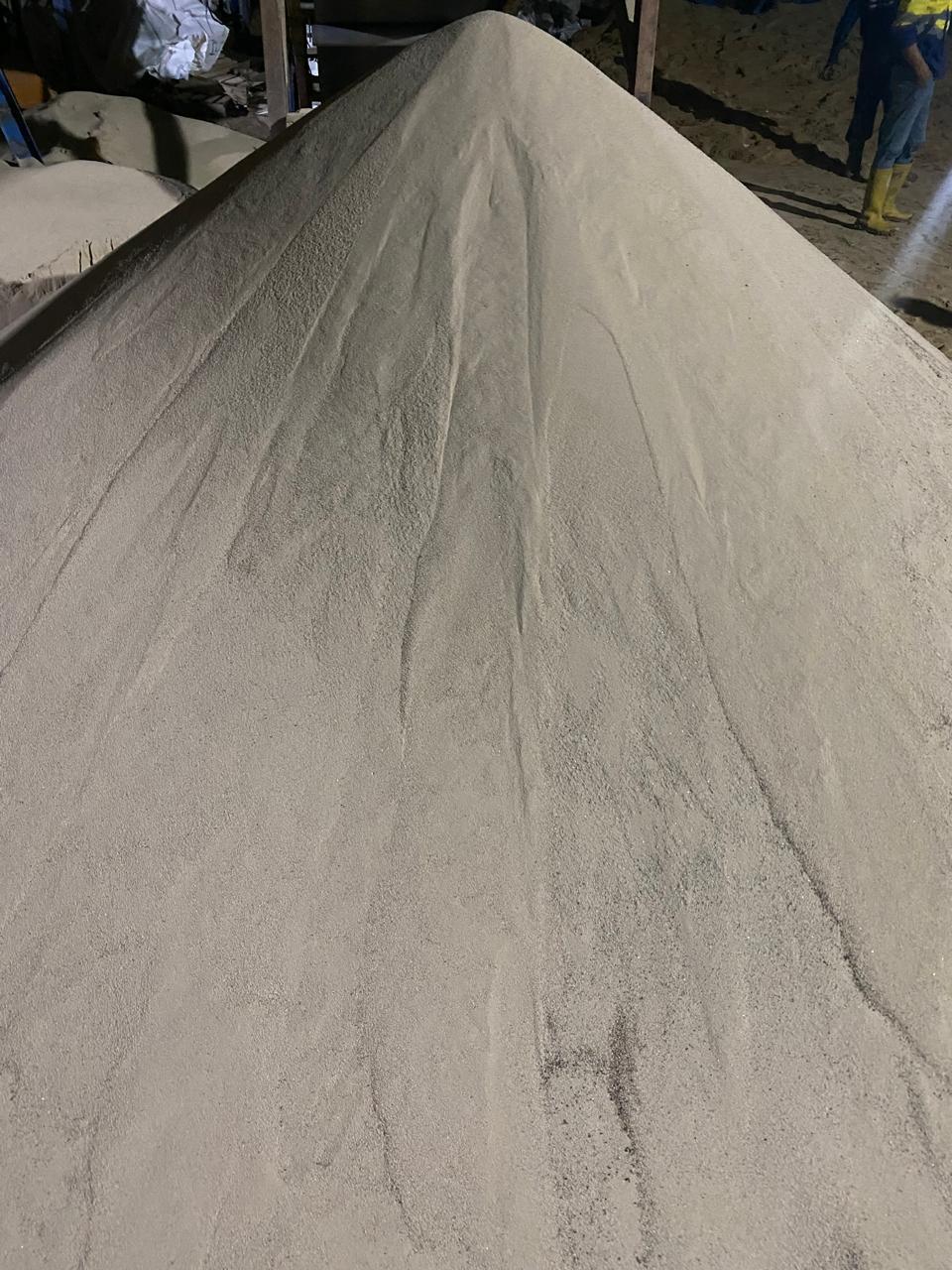

Silica Flux

Silica Flux

Silica flux (primarily SiO₂) is a key material in metallurgy, glassmaking, and ceramics, used to lower melting points, improve fluidity, and remove impurities by forming slag. In metal smelting (e.g., copper, steel), it reacts with metal oxides (like FeO) to create low-melting silicates (e.g., fayalite slag), separating waste from molten metal. In glass production, it adjusts viscosity and clarity, while in ceramics, it modifies glazes and thermal stability. Though effective, excess silica can increase viscosity, requiring balance with basic fluxes (e.g., lime or soda ash). Its role is critical in industrial processes for purification and material enhancement.

Parameter Specification
Quartz (Crystalline Silica) (ie. Sand) > 99%
Mineral(s) < 1%
SiO₂ (Silicon Dioxide) ≥ 95–99%
Impurities ≤ 1–3% (Al₂O₃, Fe₂O₃, TiO₂, alkali oxides)
MineKleen

MineKleen® Plus

MineKleen Plus is a patented technology formulated with synthetic fluids enhanced with polymeric binders. MineKleen Plus controls fugitive dust and stabilizes soil using a dual mechanism action. First MineKleen Plus weights particles and secondly it agglomerates particles using a re-workable and cohesive action. MineKleen Plus is the advanced environmental performance solution for dust suppression, fines preservation and soil stabilization.

Parameter Specification
Boiling Point >6000 F (>316C0)
Specific Gravity 0.82 – 0.87 (Kg/Litre)
Weight per Gallon (US) 6.83 – 7.25 pounds/Gallon
Appearance Viscous, clear liquid
Odor None
Solubility in Water Insoluble in water
Incompatibilities Strong oxidizing materials
Flammability Non-flammable, non-combustible
Stability Stable under normal handling conditions
Corrosive Non-corrosive
